Scope of Equipment

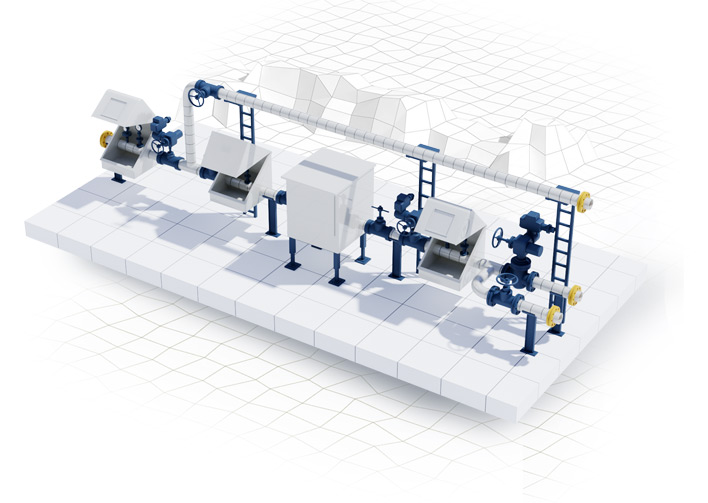

Valve assembly is a structurally complete and spatially formed assembly piece of process unit with a given level of pre-fabrication designed to be used in the main and auxiliary technology processes consisting of:
- process pipelines with isolation, safety and control valves;
- instrumentation and automation;
- devices (filters, etc.);
- maintenance devices (steel structures, block-boxes, etc.);
- operator/local automation block-boxes with life support systems.
Valve assemblies can be designed both on a special supporting structure (frame) and without it. Valve assemblies can be manufactured in open and closed types, as well as in the form of block-boxes with insulated foundations and lined by wall and roof panels made of non-combustible insulation. Seismicity of the installation area shall be in accordance with SP 14.13330 (on MSK-64 scale). Climatic version and location category are assigned in accordance with GOST 15150 and are indicated in the design and operational documentation.
Valve assemblies can be combined with other units or other process equipment using piping, isolation and control valves and other components.
Advantages
- Valve assembly is supplied fully prefabricated. Mounting of assemblies at the construction site consists only of their installation on the foundation, connection to one another and connection to external utilities
- Well-thought layout solution allows personnel to have unobstructed access to all assemblies and parts of modular units in accordance with GOST 12.2.049-80, as well as possibility of removing repair tools
- Optimum reliability and aesthetics
- Minimum weight of civil structures due to use of new effective materials
Technical characteristics
|
Parameter
|
Value
|
|
Type
|
Open or closed type, as well as block-boxes with insulated foundations and lined by wall and roof panels
|
|
Nominal pressure
|
maximum 80 MPa
|
|
Working fluid
|
oil/gas/condensate/water etc.
|
|
Operating mode
|
continuous/periodic
|
|
Isolation valves control
|
Manual / electric drive / pneumatic drive
|
|
Gate tightness of isolation, check and shut-off valves as per GOST 9544-2015
|
class А
|
|
Valve material
|
as per GOST 33260-2015
|
|
Flanged connections
|
GOST 33259-2015
GOST 28919-91
ASME
DIN
|
|
Pipeline material
|
09G2S, 13ХFА or other
|
|
Seismicity of the area
|
Location as per SP 14.13330 (on MSK-64 scale)
|
|
Climatic type
|
as per GOST 15150
|
|
Noise level
|
not exceeding sanitary norms (max 80 dBa)
|
|
Service life
|
up to 30 years
|
|
Compliance of equipment to Certificates
|
TR CU 010-2011
TR CU 032-2013
TR CU 012/2011
ISO 9001
|
