Application

• Oil and gas extraction
• Oil refining, petrochemical and gas industry
• Metallugry
• Refrigeration equipment
• Power industry, housing and utility infrastructure
• Food industry

Design features

• Packaged supply of pump station complete with vessels, operator units and other auxiliary units. Power supply units and control units can be made both as single standing or combined into a complex under one roof with pump unit
• Process calculation of optimal piping diameters, development of efficient process schemes and application of energy-saving equipment, allowing to use the equipment in a wide range of supply flows and pressures
• Fully automated control system that allows operation without presence of service personnel
• Prevention of unauthorized access to the equipment
• Guarantees of trouble-free operation during the warranty period and the entire declared period of operation
• Technical consulting support during operation of pump station equipment

Advantages

• Possibility of using sea water as working fluid
• Possibility of full automation of the station by means of using actuated isolation valves
• High equipment ergonomics allowing efficient maintenance and repair
• Equipping pump stations with alarm, control and metering devices together with software that ensures trouble-free operation
• Convenient equipment logistics
• Reduced costs of construction and installation

Delivery time depends on pump station complexity and ranges from 3 to 6 months.

Standard Scope of Equipment

— Pump unit:

• pump units with piping;
• supply and exhaust ventilation;
• waterproof lamps;
• racks with primary control devices;
• drainage system for discharging drained product into closed disposal system;
• heating system.

— Operator unit:

• internal equipment of operator unit;
• electrical panel;
• oil heaters with temperature regulator;
• monitoring and control cabinets;
• cable lines with control and power cables in separate metal boxes.

— Power- and electric supply unit:

• hardware unit;
• control unit;
• VSD unit;
• transformer unit;
• switchgear units;
• set of spare parts for commissioning;
• set of spare parts for 2 years of equipment operation;
• steel pipelines with flanged or quick-release couplings for units connection.

— Auxiliary vessel equipment
— Service platforms
— Interconnecting communication equipment
— Security and life support systems

Technical characteristics

It is allowed to use pump units with other characteristics at Client’s request

Operating principle

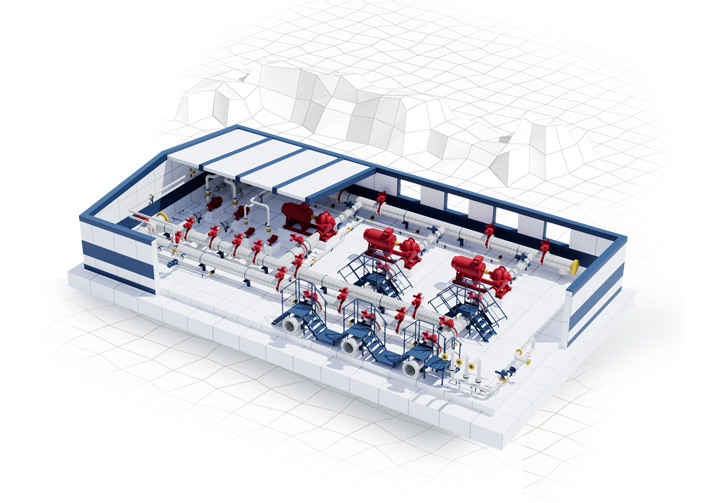

Modular Fire Fighting Pump Station is a set of equipment and pipelines designed to supply water or foam extinguishing agent to the fire zone to prevent fire development. Liquid in this equipment is supplied under pressure. In most cases, two groups of pumps are placed in FFPS – main pumps and circulating pumps. Usually, one pump is in operation, another is standby. Circulating pumps in continuous operation serve to maintain constant pressure in the fire water ring. Main pumps start up only when fire signal is received. Depending on the required technology, pump stations can be of water-, foam- and combined fire extinguishing type. Fire Fighting Pump Stations are equipped with centrifugal type pumps. Pumps are selected based on the required supply flow rate and pressure head. All types of pump units available for delivery are actuated by electric motors of general industrial design. Also, in order to ensure uninterrupted fire extinguishing, FFPS can be equipped with pumps with internal combustion engines in case of a power outage at the facility.
